Punched-table trolley
Punched folding-table trolley “FOP”The models have φ5mm holes at 8 mm pitch on each table. The products are suited for carrying works whose bottom surface require to contact air. Each table can have 20 kg loads. |
 |
“FOP-2” JPY90,000
Ergonomic round shapes on tables & pipes fit your hands & body just right.

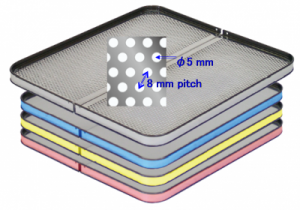

- φ5mm holes are punched at 8 mm pitch.
- Wide-open when in use and be folded to 18 cm in thickness.
- Double wheel castors are noise prevention type.
- No welding. Use rivets and plastic joints to fasten.
components:
| Tables & Pipes | stainless steel |
| Joints | plasticized nylon |
| Castors | φ100m double wheel castors with the outer tread nylon-elastomer. Two castors in the diagonal position accompany the motion locks. |
| Load Capacity | 20 kg per table |
| Duration | expected 10 – 15 years |
| Warranty | 1 year |
Variations
| model |
Open dimensions W*D*H (mm) |
Tables | Weight (kg) | JP Yen | |
| Compact | FOP-2 |
613*505*838 |
double | 12 | 90,000 |
| FOP-3 |
613*505*958 |
triple | 17 | 120,000 | |
| FOP-4 |
613*505*1540 |
quadruple | 25 | 150,000 | |
| Mid-range | FOPM-2 |
763*505*838 |
double | 15 | 110,000 |
| FOPM-3 |
763*505*958 |
triple | 21 | 134,000 | |
| FOPM-4 | 763*505*1540 | quadruple | 28 | 163,000 | |
| Large | FOPW-2 | 933*505*838 | double | 17 | 120,000 |
| FOPW-3 | 933*505*958 | triple | 25 | 150,000 | |
| FOPW-4 | 933*505*1540 | quadruple | 31 | 175,000 |
Note. The prices are the reference values in the retail market in Japan. For the wholesale business outside Japan, please inquire us at
eng@tokuyama-sus.co.jp. Thanks!
