Heavy-duty trolleys



Heavy-duty folding trolleys

  “FGA-FF” models group can bear 45 kg of loads on each table.  “FSTS-FF”  is capable of carrying 60 kg per table.



FGA-2FF JPY85,000

Ergonomic round shapes on pipe handles fit your hands.

  • Each table can carry maximum 45kg.

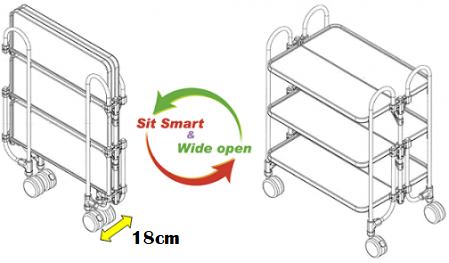

  • Wide-open when in use and be folded to 18 cm in thickness.
  • Double wheel castors are noise prevention type.
  • No welding.  Use rivets and plastic joints to fasten.

components:

Tables & Pipes  stainless steel
Joints  plasticized nylon
Castors  φ100m double wheel castors with the outer tread nylon elastomer.  Two castors in the diagonal position accompany the motion locks.
Load Capacity  45 kg per table
Duration  expected 10 – 15 years
Warranty  1 year

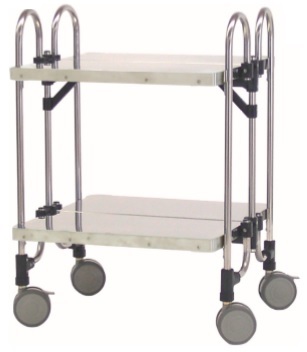

“FGA-FF” models

model

Open dimensions

W*D*H (mm)

 Tables Weight (kg) Retail Price
Compact  FGA-2FF

613*505*838

 double 12 JPY85,000
 FGA-3FF

613*505*958

 triple 17 JPY110,000
FGA-4FF

613*505*1540

 quadruple 25 JPY140,000
Mid-range FGAM-2FF

763*505*838

 double 15 JPY100,000
FGAM-3FF

763*505*958

 triple 21 JPY124,000
 FGAM-4FF 763*505*1540 quadruple 28 JPY153,000
Large  FGAW-2FF 933*505*838 double 17 JPY110,000
 FGAW-3FF 933*505*958 triple 25 JPY140,000
FGAW-4FF 933*505*1540 quadruple 31 JPY165,000





FSTS-2FF JPY130,000

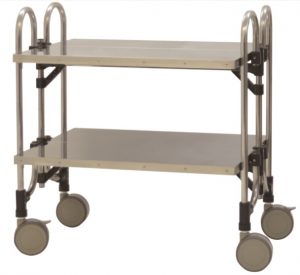

“FSTS-2FF” models
  • The trolleys can carry max. 60kg on each shelf.
  • Wide-open when in use and be folded to 25 cm in thickness.
  • Double wheel castors are noise prevention type.
  • No welding.  Use rivets and plastic joints to fasten.

components:

Tables & Pipes  stainless steel
Joints  plasticized nylon
Castors  φ130m double wheel castors with the outer tread nylon elastomer.  Two castors in the diagonal position accompany the motion locks.
Load Capacity  60 kg per table
Duration  expected 10 – 15 years
Warranty

 1 year



“FSTS-FF” models

model

Open dimensions

W*D*H (mm)

 Tables Weight (kg) Retail Price
Compact  FSTS-2FF

604*650*930

 double 28 JPY130,000
 FSTS-3FF

604*650*1305

 triple 50 JPY160,000
FSTS-4FF

604*650*1680

 quadruple 66 JPY190,000
Mid-range FSTM-2FF

904*650*930

 double 32 JPY170,000
FSTM-3FF

904*650*1305

 triple 55 JPY210,000
 FSTM-4FF 904*650*1680 quadruple 73 JPY260,000
Large  FSTA-2FF 1204*650*930 double 35 JPY200,000
 FSTA-3FF 1204*650*1305 triple 60 JPY260,000
 FSTA-4FF 1204*650*1680 quadruple 80 JPY330,000



Note. The prices are the reference values in the retail market in Japan.  For the wholesale business outside Japan, please inquire us at

eng@tokuyama-sus.co.jp.  Thanks!
