Copper trolley “FCuAW-3-R” wide & triple

copper pipe folding wagon "FCuAW-3-R"

“FCuAW-3-R” JPY175,000

Ergonomic round shapes on tables & pipes fit your hands & body just right.

  • pipe-handles are made of copper alloy which is antimicrobial.  It is utilized to prevent in-house infection.
  • Wide-open when in use and be folded to 18 cm in thickness.
  • Double wheel casters are quiet – noise prevention type.
  • No welding. Use rivets and plastic joints to fasten.

Components:

Handle pipes    copper alloy
Tables & pipes     stainless steel
Table frames    stainless plate on aluminium
Joints    plasticized nylon
Casters    nylon elastomer/ φ100mm double wheel castors. Two castors in the diagonal position accompany the motion locks.

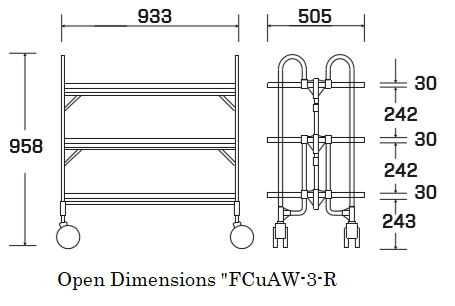

Open dimensions FCuAW-3-R

Open Dimensions: W933*D505*H958 mm
Closed Dimensions: W933*D180*H1060 mm
Weight: 25kg

Table:  triple tables

Load capacity: 30kg per table

Duration: expected 10 – 15 years

Warranty: 1 year

Please ask us for more.

email: eng@tokuyama-sus.co.jp

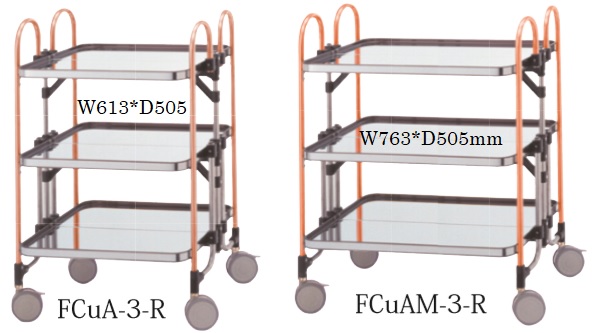

size variations
  • Compact – “FCuA-3-R” JPN145,000
  • Mid-range – “FCuAM-3-R”  JPY159,000

"FCuAW-3-R" variations
